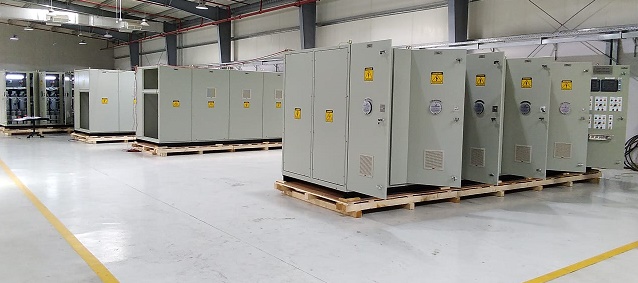

Power Capacitor Banks

MV Reactive Power products compensation is defined as the management of reactive power to improve the performance of AC power systems. The concept of VAR compensation embraces a wide and diverse field of both system and customer problems, especially related with power quality issues, since most of power quality problems can be associated or solved with an adequate control of reactive power. In general, the problem of reactive power compensation is viewed from two aspects: load compensation and voltage support. In load compensation the objectives are to increase the value of the system power factor, to balance the real power drawn from the AC supply, compensate voltage regulation and to eliminate current harmonic components produced by large and fluctuating nonlinear industrial loads. Voltage

MAIN CHARACTERISTICS

• Sturdy Design
• Outdoor installation
• Rated for Ambient Temperature of 55º C
• Delivers 1 MVAr per step to 11kV system
• Earthed metallic partitions between power compartments (Metal-clad)
• Epoxy wall through bushings between compartments
• Harmonic overload protected
• Easy installation at site- Single monoblock for transport
• Fully type tested including short circuit, temperature rise, IP55 etc
